JGY VVL Fuel Rail V2
Newly designed in July 2014, this newest option eliminates the bridge of the old design; great for RWD conversions as well

*Due to the close proximity of the IACV on the FWD VVL intake, some applications of this rail may come in contact with the IACV tube and is not covered under fitment warranty: $139

Pictured above is our new 1 piece JGY VVL rail. As you can see, the fitment is great. You can also see the bracket mounting locations. Yes, the Nismo FPR does fit. The 2 piece rail is installed exactly the same.

VVL Fuel Rail
The new JGY 2 piece rail was designed for the low clearance on the VVL intake. The new rail gives the VVL owners the options of the MSD style injectors with or without the stock fuel regulator: $139

JGY Gti-R Fuel Rail
Available for stock fuel pressure regulator or aftermarket (the Nismo FPR fits the stock location): $159   When ordering, our normal inventory rail ships out for JGY injectors (large size). If using Gti-R injectors, or same size as Gti-R injectors, please inform JGY staff.

JGY Fuel Rail - B13: $139

JGY Fuel Rail - B14: $139

JGY Fuel Rail - B15: $139

B14 GA16DE JGY Fuel Rail: $135
(Also available for B13 pic not shown)

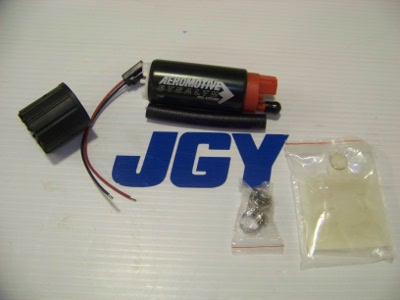

Aeromotive 340 LPH fuel pump kit, now includes filter kit, rated for 700HP: $115

B13 B14 255 high pressure Walbro Fuel Pump: $99

Greddy FPR swivel adaptor
This is used to rotate the factory FPR to a more favorable position: $60

Nismo Adjustable Fuel Pressure Regulator, an effective way to adjust base fuel pressure and to make sure that your fuel pressure is rising as your turbo boost is: $134

Injector Dynamics 1700cc Injectors - 60mm Length - 11mm Blue Top - 14mm Lower O-Ring (Set of 4) available in 14mm top as well. JGY price: $974

The ID1700 is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700 was designed to fill the gap between the ID1300 and the ID2000, and like the ID1300, it features corrosion resistant internals making it compatible with all known automotive fuels, you read that right, and that means E85.

A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700 immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700 excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

The ID1700 was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700 will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, then buy the ID1300 will provide this, and is capable of approximately 150hp per injector on E85.

Injector Dynamics ID1050X Injectors 14mm (Purple) (Set of 4): $440
The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.

Aeromotive's latest version of the 340LPH fuel pump is out. For use in applications making over 500HP, now includes the filter, JGY price: $115

JGY 36lb (370cc) Injectors
Great for replacing your old worn out DET injectors and for upgrades to VVL motors: $55 each

JGY Top Feed High Volume 50lb (550cc) Injectors
High quality, bench flowed and matched
Guaranteed fitment and function with our rails
Just .75ms latency at 13v
Many applications: $65 each

JGY Top Feed High Volume 72lb (750cc) Injectors
High quality, bench flowed and matched
Guaranteed fitment and function with our rails
Just .75ms latency at 13v
Many applications: $75 each

JGY Top Feed High Volume 96lb (1000cc) Injectors
High quality, bench flowed and matched
Guaranteed fitment and function with our rails
Just .75ms latency at 13v
Many applications: $75 each

440cc injector, small stem style, high impedance, great for CA18DET and to replace your old GTi-R injectors: $59 each

Injector Dynamics 850cc injectors: $125 each (Call for special pricing)

Injector Dynamics 2000cc injectors, 60mm length, 14mm top: $240 each (Call for special pricing)

Injector Dynamics injectors are Bosch injectors that are repackaged and sold with adaptor hats so the height is suitable for most applications, such as the JGY rail
ID 725cc: $120 (Call for special pricing)
ID 850cc: $125 (Call for special pricing)
ID 1000cc: $120 (Call for special pricing)
ID 2000cc: $240 (Call for special pricing)

120lb/1260cc Low Impedance Injectors,
fit the JGY rail: $75 each

MSD Style Injector Connectors: $5 each

Resistors for low impedance injectors $4 each

Blitz side feed 555cc: $139 each
Blitz side feed 850cc: $139 each
